learn to the build the gunrun backpack!

I hope these resources are enough to get your backpack going! If you're looking for support, join the community discord: https://discord.gg/7vsf8tA




This is a list of every part you need to build the backpack.

This build guide is a google doc that will walk you through assembling the backpack: cable flows, LiveU setup, etc.

Once you get your bag setup, this will tell you how to run and maintain it.


below are the major parts of the backpack



Part #1 - The Liveu solo

The LiveU Solo is the brains of the backpack. It takes HDMI audio/video from your Camera, power from your battery, and data from your 4 modems to produce stream you'll be pushing to Twitch. Make sure to get LRT too, that is the tech that allows for the bonding between modems to happen.

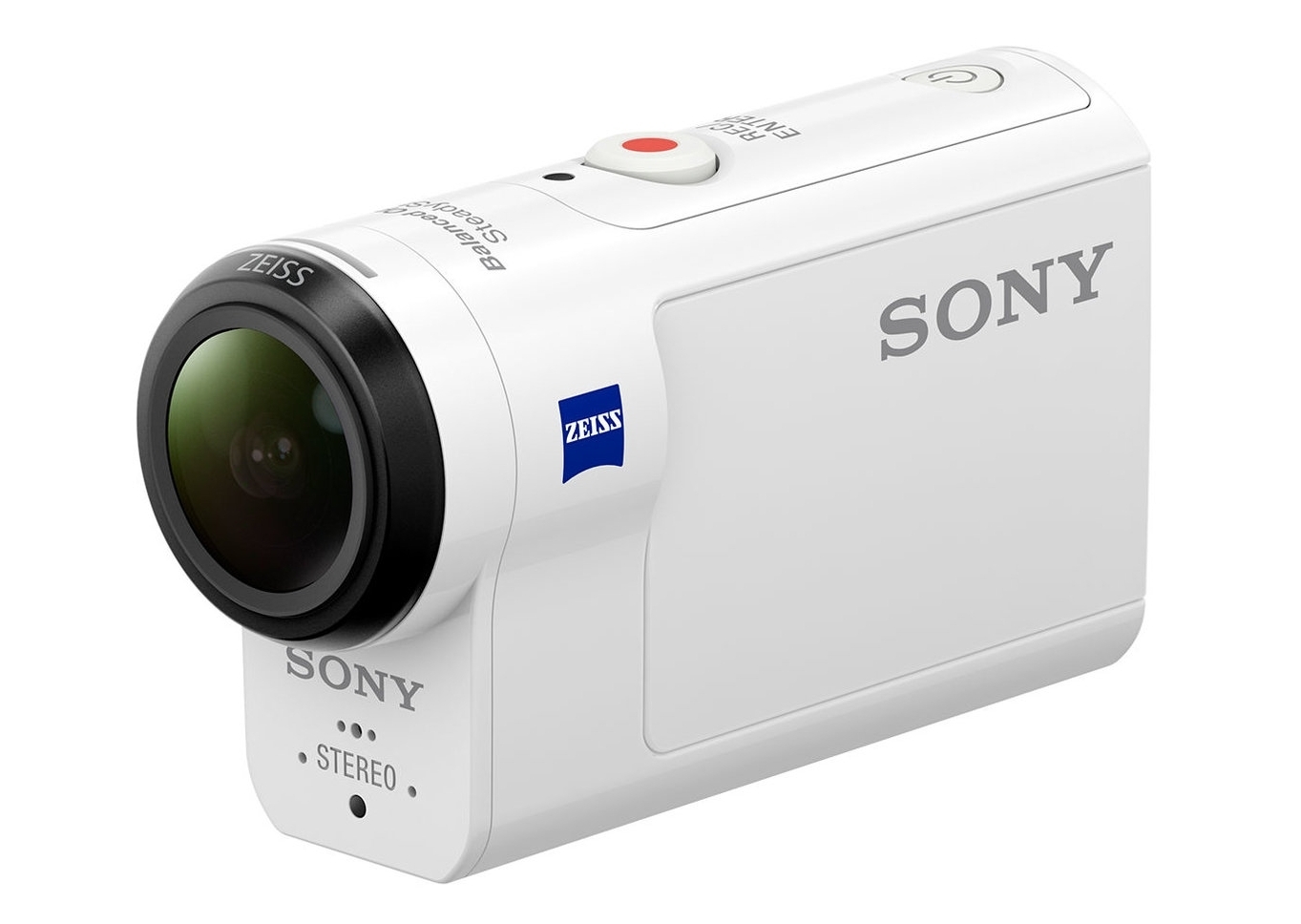

Part #2 - Sony AS300

The Sony AS300 is the camera of choice for the backpack. The stabilization is just good enough to not require a full gimbal, the audio is really decent for an action camera with good pickup for anyone you would be talking to 3rd or 1st person, and the wide angle will capture almost everything within your view.



Part #3 - LTE Modems

In the backpack, we take advantage of the LiveU Solo's maximum network interfaces we can connect. So we have a mix of 2 modems connected to the LiveU Solo via USB, 1 on ethernet, and 1 through WiFi.

UnlimitedIRL my provider of choice for sims/modems in the US for their actually unthrottled contracts.

Prices:

  • $598 a month for 4 True Unlimited Data Plans

    • For 1x Verizon, 1x T-Mobile and 2x AT&T

  • Just a Verizon Plan - $229 a Month

  • Just a AT&T Plan - $139 a Month

  • Just a T-Mobile Plan - $139 a Month

Use the code: GUNRUN at check out for 10% off your first month

For non-US streamers, there's also Unlimited International Plans available which work in nearly every country.

Note: You do not need all 4 Plans to make the backpack work, but this is simply the best way to guarantee as much bandwidth/stability as possible out in the US.


Part #4 - Manfrotto Lifestyle NX CSC Backpack

This is the actual backpack you wear. The reason I went with the Manfroto is the two compartment design: Modems in the top, Batteries in the bottom, meshed side pockets to prevent overheating of the LiveU Solo units.

Because of the layout, the backpack is bottom heavy enough to turn a monopod inserted on the side of the bag into a functional tripod to easily sit the backpack down anywhere and hangout with your audience; like they're right next to you.

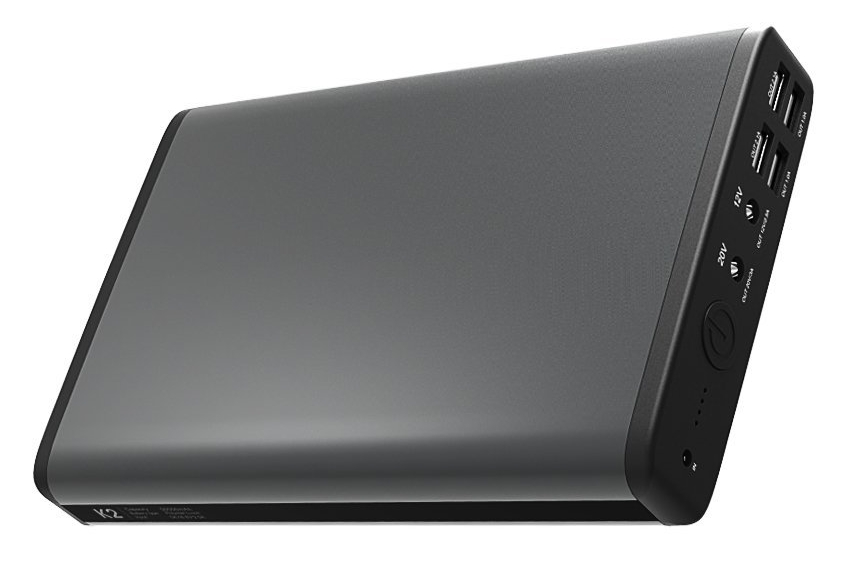

Part #5 - PowerOAK 50000MAH Power bank (main BATTERY)

This battery fuels all the devices in the backpack. The 12v port goes right into the LiveU Solo, the USB ports go into the AS300 Camera and the two modems powering the Ethernet and Wifi out.

For some context, without this the backpack will only live as long as the modems/LiveU/camera's internal batteries all work. Which is about an hour and a half minutes. Take this as the amount of time you have if you wanted to buy multiple of these to switch between or try and charge it before it dies.

In beta testing, we've seen 7-9 hours of usage with a combination of this battery and all the other devices already being fully charged. If this isn't enough you can buy two or more.


Part #6 - Psynaps servers

The Psynaps servers have become instrumental for most backpack users. It allows for overlays, remote control of scenes, automatic brb scene deployment during low bitrate.
